FAT & Pressure Test of Mobile Chain Tensioner (MCT) Hydraulic Cylinders for FPSO

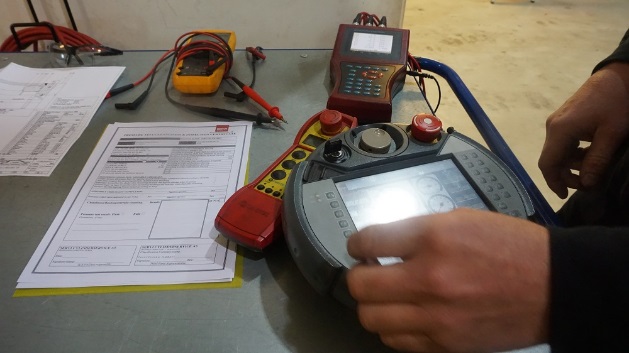

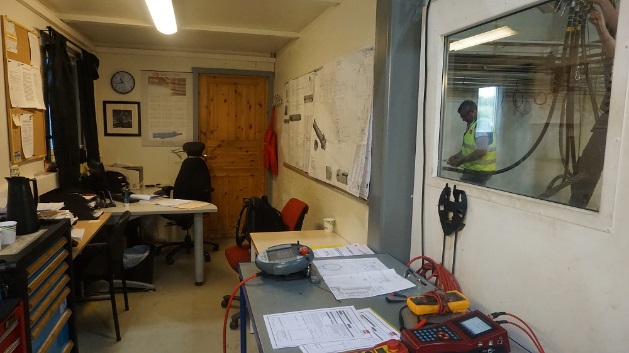

Test Cabinet.

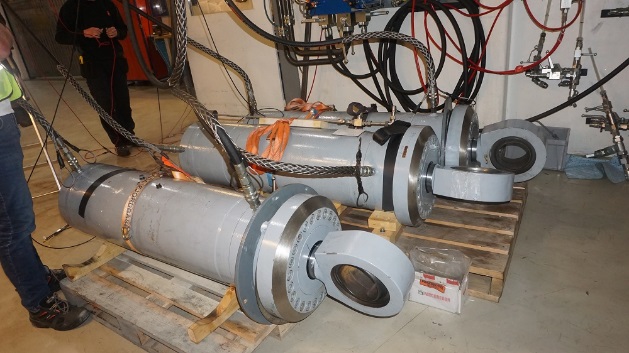

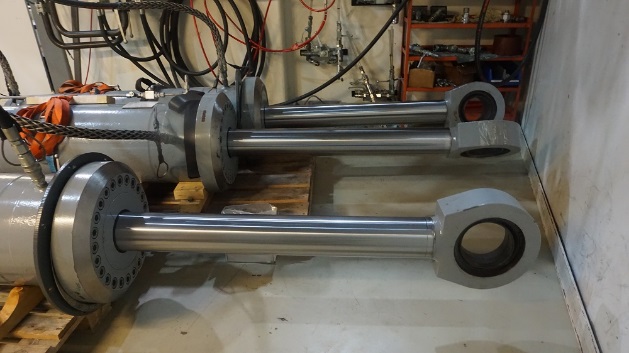

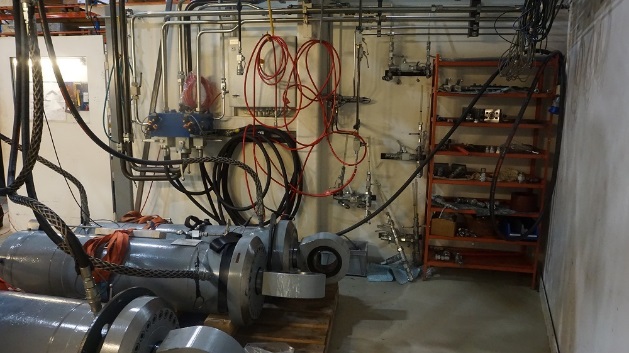

Complete Cylinder assembly (BU928, BU930, BU931) set-up for pressure test.

Cylinder showing marking on the Rod.

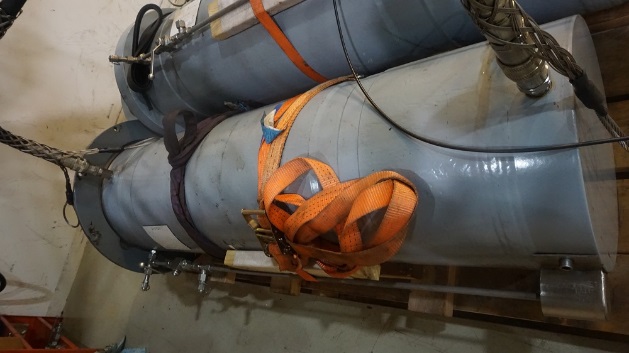

Temporary support on pipe spool ready for testing

Operating valve in operating position ready for testing

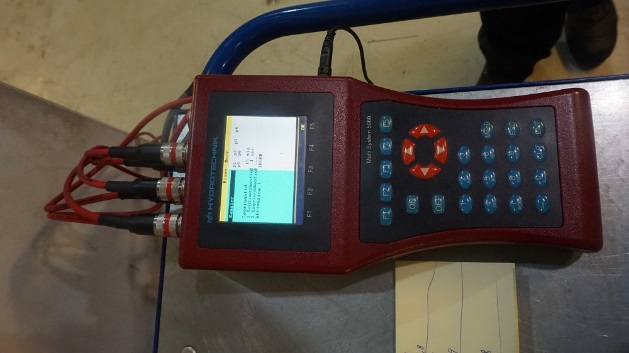

Measuring Systems.

Cylinder Assembly with piston facing blast wall.

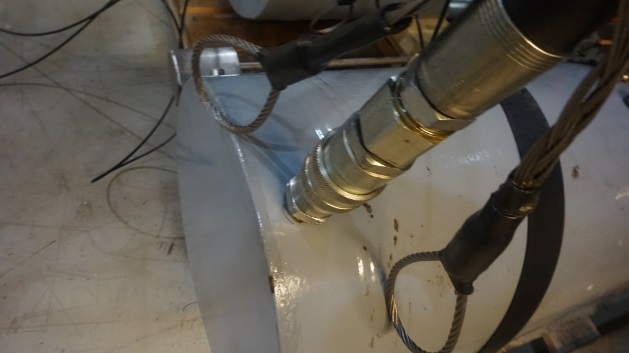

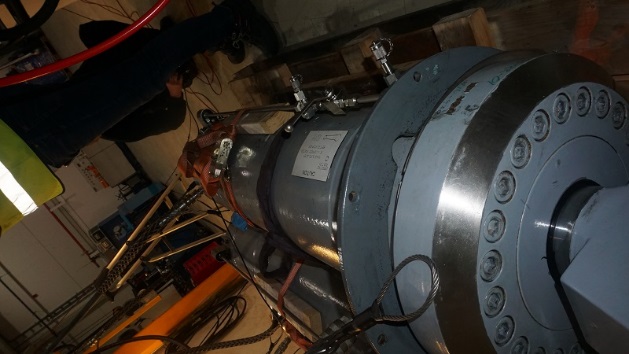

Picture showing Pressure hoses connected.

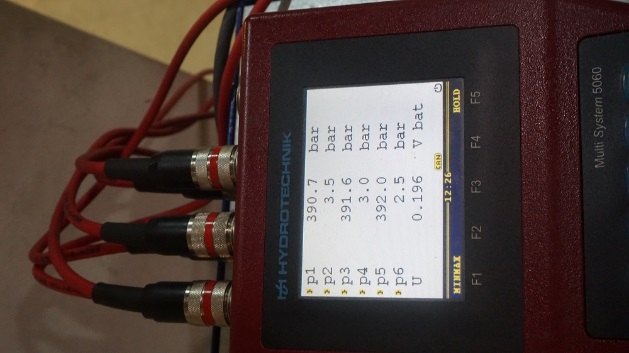

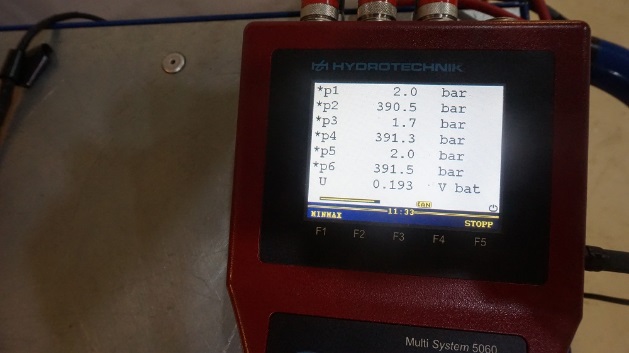

Measuring System showing pressure at Rod side.

Measuring System showing hold time.

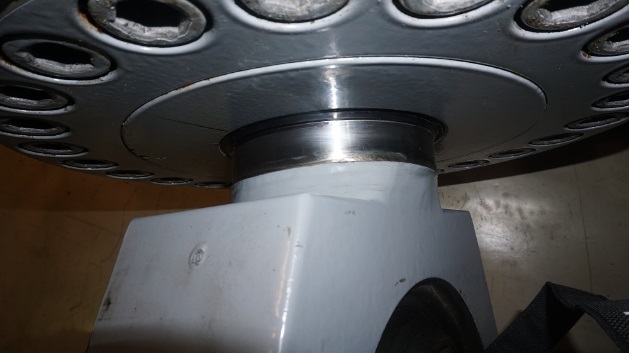

Inspection of Piston sealing element for leakage.

Inspection of fittings for oil leakage.

Measuring System showing pressure at Piston side.

FAT & MC of Firewater pump packages for FPSO

Centralizer.

Support Mounting.

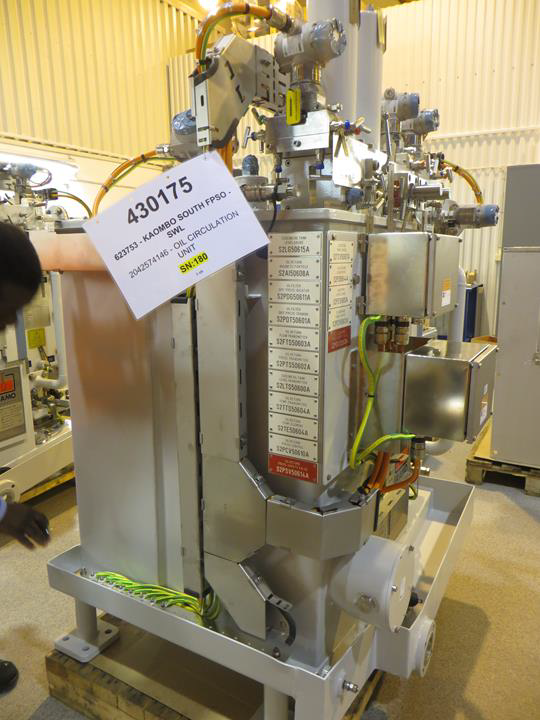

Oil circulation Unit.

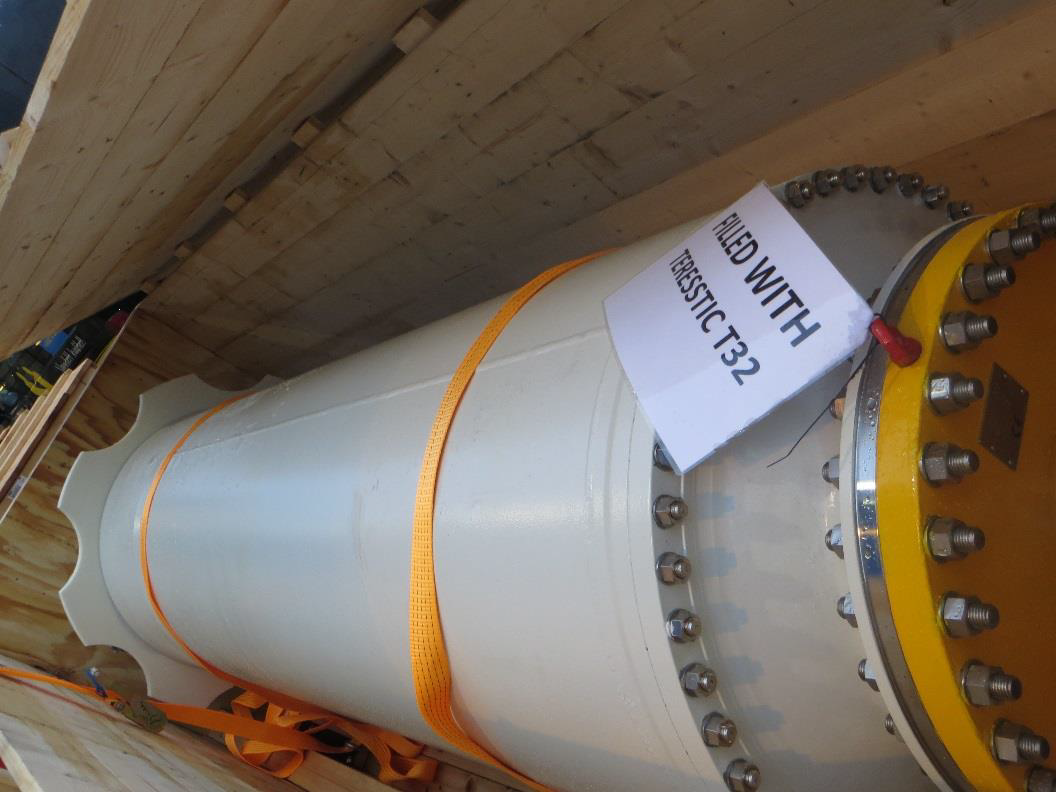

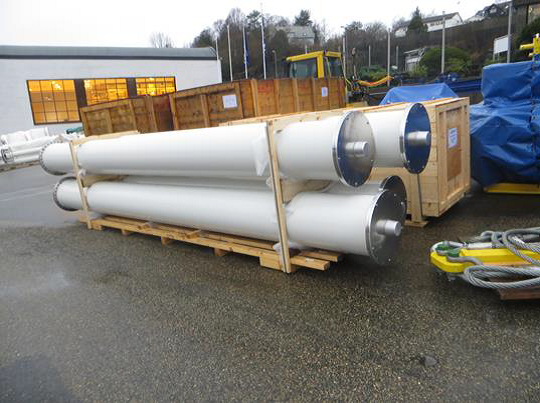

Pipe stack.

PROJECTS & NAMES
FAT & MC of CARGO Pumping, DEEPWELL for Petrobras FPSO Carioca MV30 (On-going)
FAT & Pressure Test of Mobile Chain Tensioner (MCT) Hydraulic Cylinders for FPSO Kwame Nkrumah MV21 – Project Yellow
FAT & MC of Egina Cargo and Process Pumps, and Pumping Systems for Egina FPSO
FAT & MC of Firewater pump packages for KAOMBO North and South
